(v23) R Data Generator

R Data Generator

This applies to: Managed Dashboards, Managed Reports

The R Data Generator transform lets you generate data by writing scripts using the R statistical programming language. This is similar to the R Language Analysis transform except that it does not accept input from a preceding transform and generates its own output directly from R.

R is both a programming language and an environment for statistical computing, graphics, and predictive analysis. You can use the R Data Generator transform to generate data for prototyping or developing proof-of-concepts, or if you are using R to access a data source.

To learn more about the R language, see The R Project for Statistical Computing.

Setup

Before you can use the R Data Generator transform in Symphony, the R programming environment must be installed on a server.

See Install and configure R for more details.

Input

The R Data Generator transform does not have any inputs. It just generates output by running R scripts against the R server.

Add the transform

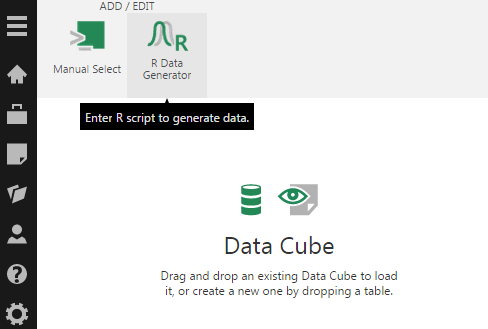

When creating a new data cube, you can add the R Data Generator transform to an empty canvas from the toolbar.

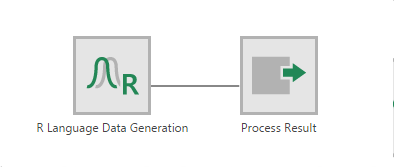

The R Language Data Generation transform is added to the data cube and connected to a Process Result transform automatically.

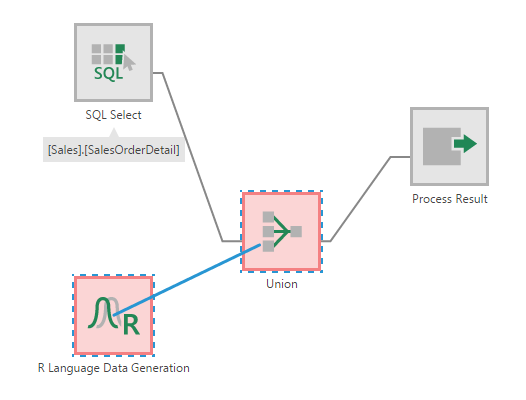

You can also add the R Data Generator transform from the toolbar to an existing data cube process. A typical example is to connect the R Language Data Generation instance to a Union transform which merges data from multiple inputs.

Configure the transform

Double click the R Language Data Generation transform or select the Configure option from its right-click menu.

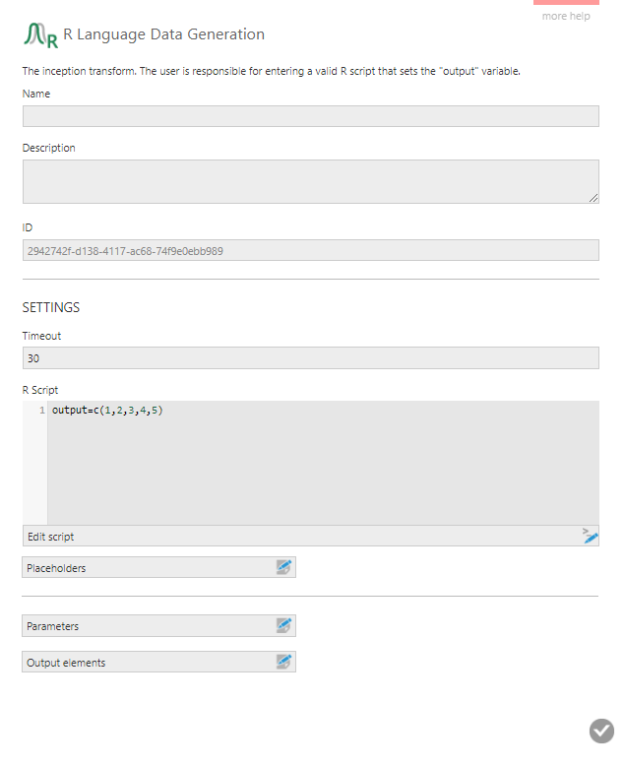

In the configuration dialog for the transform, the key task is to enter an R script that sets the output variable.

For example, a simple script for generating a column of numbers from 1 to 5 looks like this:

output=c(1,2,3,4,5)

In this dialog, you can set up Placeholders to insert into the script that pass in parameter values similar to when using a manual select.

You can also set up Parameters to directly filter this transform's output like with select transforms.

Output

The output of the R Data Generator depends on the R script it is configured with. It can be a single value, a column of values, or multiple columns.

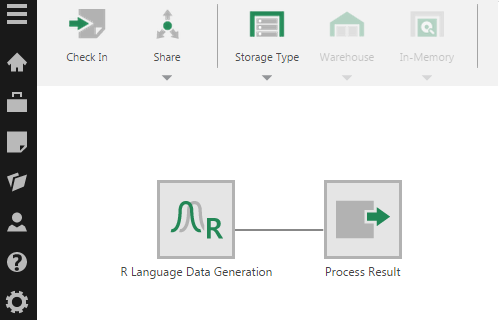

In the case of the simple script for generating numbers from 1 to 5, you can see an output column named Data by selecting the Process Result transform and then clicking on Data Preview.

Example R scripts

Here are some example R scripts for generating data.

Random number generation

Generate 10 random numbers between 200.5 and 300.5:

output=runif(10, 200.5, 300.5)

Generate 5 random integers between 1 and 1000:

output=sample(1:1000, 5)

Generate two columns of data. The first column contains integers from 1 to 5 in order. The second column contains 5 random integers between 50 and 100:

x=c(1,2,3,4,5) y=sample(50:100, 5) output=data.frame(x,y)

Generate two columns, the first column with 12 random dates between 2017/01/01 and 2018/01/01, and the 2nd column with 12 random integers between 1 and 1000:

x=sample(1:1000, 12) y=sample(seq(as.Date('2017/01/01'), as.Date('2018/01/01'), by="day"), 12) output=data.frame(x,y)

Pre-defined datasets

Load pre-defined data from the R Datasets Package. For example, Freeny's Revenue Data:

output=datasets::freeny

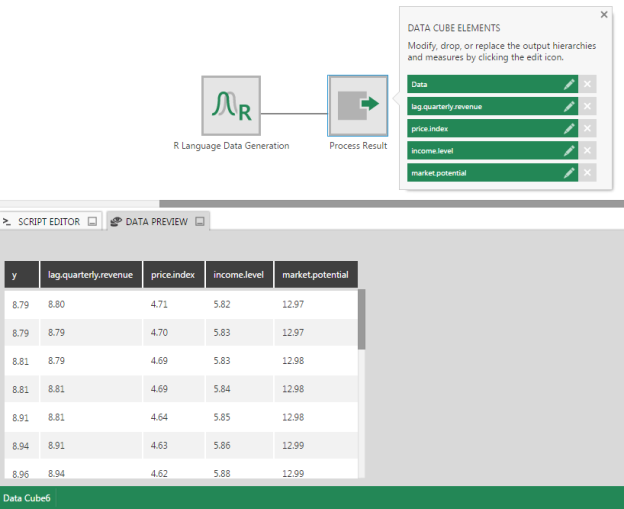

Here's the resulting Data Preview:
