(v23) Add a relationship between tables

Add a relationship between tables

This applies to: Managed Dashboards, Managed Reports

Relationships allow you to work with data from multiple data sources as if they had already been prepared into a single data cube for you. For example, with relationships defined, data from an Excel file and a SQL table can be selected together and automatically joined, even if the matching columns have different names.

You can use the Relationships dialog to review existing relationships and add new ones. These are used when selecting data in a metric set, or when creating a multi-level hierarchy.

Note: If there is no relationship defined, the relationship will be guessed for you when you use unrelated data in a metric set. You can then modify how the data was joined as shown in Automatic joins and hierarchies.

Review existing relationships

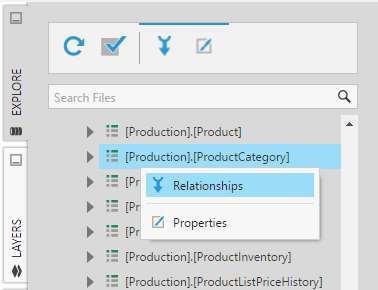

Go to the Explore window, right-click on a table and choose Relationships.

Note: For data cubes, you cannot define a relationship between its data and another data structure before combining its data with other data in a metric set, but you can edit the automatic join afterward.

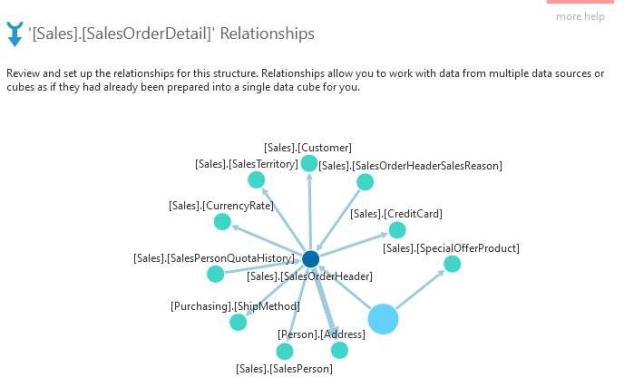

In the Relationships dialog, you will see a diagram displaying the existing relationships between that table and other tables/data structures.

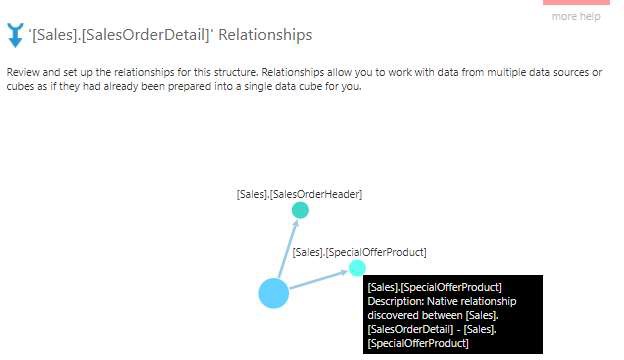

Hover over or long-tap a node (circle) to view details about how it's related in a tooltip.

For each table node in the diagram, you can right-click (or long-tap) and choose Expand to add all of the additional tables related to that table to the diagram. This allows you to explore and discover other relevant data that can be made available by the intermediate tables.

If needed, to view the relationships as a list, click List view. The Category column displaying in list view indicates how each relationship was created:

• Native relationships are defined in the database (e.g., foreign keys).
• System-defined relationships were created automatically.
• User-defined relationships were created by a user.

Return to Diagram view, then right-click a node and click Edit to see its details.

Note: Native relationships can only be modified in the source database.

Create a relationship

By creating a relationship ahead of time, you can define how two tables are related rather than allow this to be chosen for you when you or others drag data from those tables onto one metric set.

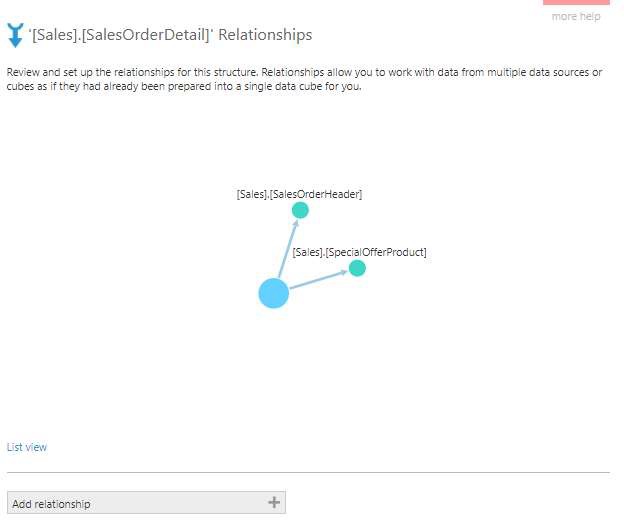

Start in the Relationships dialog opened for one of the tables as described above, and click Add relationship. The Set Up a Relationship dialog is displayed.

Enter a Name for the relationship.

Under Target Structure, find the data connector containing related data and select the related table.

This data can be from a different data source. Match elements from each structure by dragging one from the left under Source Elements to the equivalent under Referenced Elements.

Click the submit button at the bottom of the dialog to add the relationship.

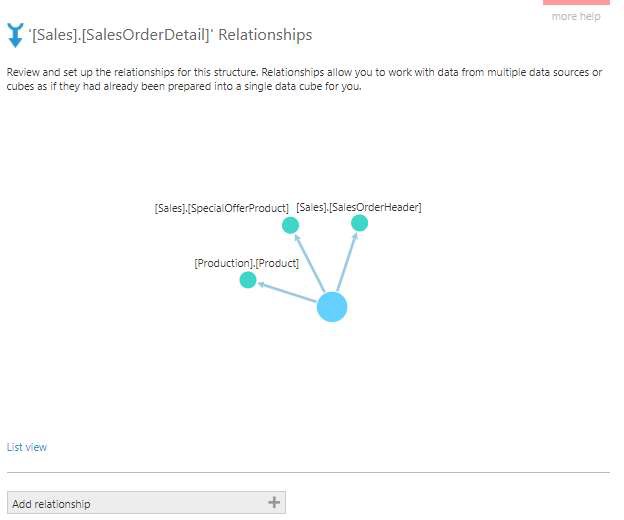

The new relationship will now be add to the diagram in the Relationships dialog as a user-defined relationship.

Using relationships

Relationships are used when selecting data from different tables and structures in a metric set, whether in the full-screen metric set editor or when working with metric sets on a dashboard or another view. They are also used when creating a hierarchy that contains multiple levels.

To demonstrate, we will create a single metric set as shown below based on a database table and two Excel spreadsheet files, after relationships have been defined.

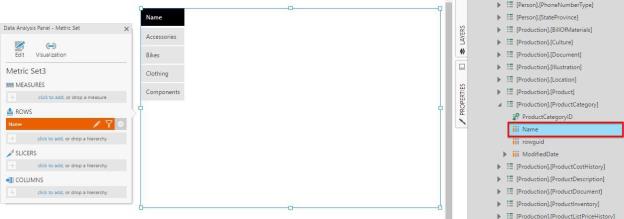

In a new dashboard, drag a column from the table [Production].[ProductCategory] to the canvas.

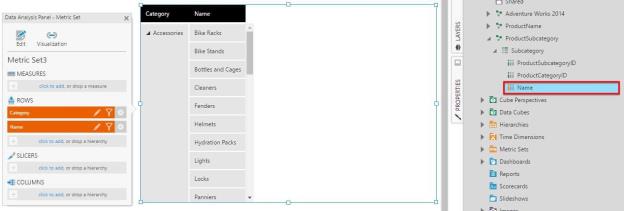

Drag a column from an Excel sheet to Rows in the Data Analysis Panel.

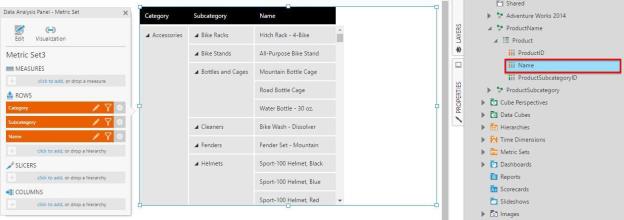

Drag a column containing additional details from a different Excel data connector.

In the background, this created automatic joins between the three tables based on the created relationships. The Automatic joins and hierarchies article shows you how you can view and edit the automatic joins, along with more examples of combining data.

You can also view these joins by promoting the auto-generated metric set if applicable, and then promoting the auto-generated source data cube behind the metric set. Edit this data cube (as a Developer user) to see the join transforms.
