(v23) Request and Apply a New License Key

Request and Apply a New License Key

Visual Data Discovery Module

This applies to: Visual Data Discovery

Note: Use the DevNet License Manager to obtain license keys. These are provided to the person in your organization we term the License POC (Point of Contact). If you don't know who your License POC is, please reach out to your Account Manager.

Note: When a Symphony standard or trial license expires, only system admins can log in (to update the license). Regular users are shown a message that the license has expired.

Manage your license keys in one of three ways:

• Manage License Keys in the UI

• Manage License Keys Using the Licensing API

• Manage License Keys Using Configuration Properties or Environment Variables

Manage License Keys in the UI

Apply a new license key:

1. In the environment for you which you need a new license key, log in as the supplied admin user (System Administrator) or a member of the Administrators group.

   Note: To log in after a trial license has expired, navigate to https://your-smphony-instance/discovery/login to log in as a system administrator and access the Visual Data Discovery UI.

2. Select Licenses from the main menu to open a Licenses work area for all modules.

3. Select License details from the Actions menu for the license you want to apply an update for. A Licenses the Manage License page appears for this license.

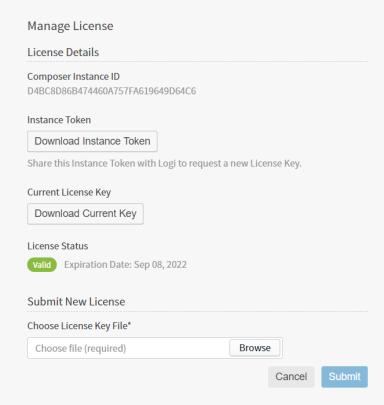

   Alternatively, select Tools > License from the main menu. The Manage License page appears.



   This work area shows your current Symphonydata discovery instance ID and its current expiration date.

   Note: If you select Download Current Key, your current license key is downloaded in a license.key file.

4. Select Download Instance Token. A .tok file is downloaded to your computer.

5. Log into DevNet and visit the License Management page to create a license file. You do this by assigning one of your license keys to a specific instance of Symphonydata discovery, by uploading the .tok file from the previous step. DevNet generates a license.key file, and downloads the file to your machine.

6. Browse to find the license key you just downloaded. Then, select Submit. Symphonydata discovery applies the new license to your instance.

Manage License Keys Using the Licensing API

This applies to: Visual Data Discovery

Endpoint	Method	Description
/api/license	GET	Returns license information for the instance.
	POST	Updates license information for the instance

API documentation is provided with your Symphony installation at this link: <symphony-URL>/discovery/swagger-ui.html.

If a problem occurs, contact your sales or technical support representative.

Manage License Keys Using Configuration Properties or Environment Variables

This applies to: Visual Data Discovery

Add your license keys and installation id to zoomdata.properties. Format the variables as shown below:

zoomdata.license.key=<value>
zoomdata.installation.id=<value>

Important: License information provided via configuration properties or environment variables have a higher priority than keys stored in the database previously provided via API or user interface. If you attempt to change the keys using the API in an environment where licensing information from configuration properties or environment variables are in use, Symphonydata discovery returns a failure message. Update the license key in the configuration files instead.

Note: For more information about extending licensing to a Kubernetes deployment, see Apply Licenses.

Licenses in Managed Dashboards

This applies to: Managed Dashboards, Managed Reports

Once you've applied a valid retail license, the evaluation watermark is removed the next time you log in.

Add a new license key (Licenses work area)

1. Select Licenses from the main menu. A Licenses work area for all modules opens.

2. Select License details from the Actions menu. A Licenses a work area specific to the module you selected, showing the licenses in your environment.

3. Select Add New to add a new license. An Add License work area opens.

4. Add the license information in one of the following ways:

   • Drag and drop the license file from your computer or networked location
   • Select Choose File to select a file from your computer or networked location
   • Copy and paste the license text into the field provided

5. Save your license. The license list is updated with the new entry.

6. Log out, then log back in to view the license update, and if applicable, the removal of the evaluation watermark.

View Licenses

View your licenses (Licenses work area)

1. Select Licenses from the main menu. A Licenses work area for all modules opens, showing license module name, status, expiration date, and days remaining in the current licensing period.

2. Use the filters to limit the licenses shown by selecting a module, or view all licenses by selecting All.

3. To see more information about a specific license, select License details from the Actions menu.

   A Licenses a work area specific to the licensed module opens, showing the licenses in your environment.

4. Take any actions needed for the licenses, or navigate away when you're done viewing the licenses.
