(v23) Viewing the Applied Filters for a Visual

Viewing the Applied Filters for a Visual

This applies to: Visual Data Discovery

You can view the filters that have been applied to a visual using the Filters sidebar or directly on the visual. Note that the filters are categorized into row-level filters and cross-visual filters. Row-level filters are saved with the visual; cross-visual filters are not.

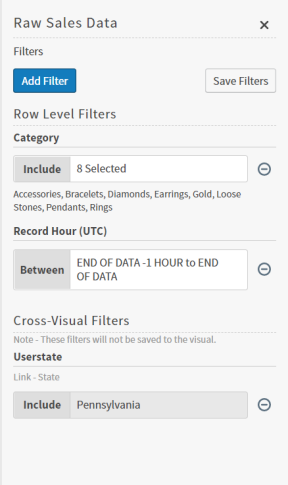

View filters on the Filters sidebar

• Select the filter icon () on the visual or select on the sidebar menu. If the visual is in a dashboard, select Settings from the visual menu (), then select on the sidebar menu.

  The Filters sidebar appears showing any filters that have been applied.



View filters directly on the visual

• Hover over the filter icon () on the visual.

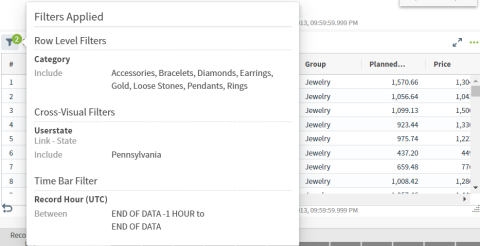

  The Filters sidebar appears showing any filters that have been applied. The following example shows a visual with three filters applied: a row level filter by sales category, a cross-visual filter for the state of Pennsylvania, and a time bar filter.

  Note: Time bar filters are not included in the total filter count shown in the green circle.
