(v23) Convert Attributes to Time Fields in Data Source Field Specifications

Convert Attributes to Time Fields in Data Source Field Specifications

This applies to: Visual Data Discovery

If your data contains time-related fields (attributes) that are not stored in a recognized time format, you can convert the fields to time fields using the Fields tab of the data source configuration. As long as any string field contains date or time data, you change it to a time pattern recognized by Symphony.

Note: The process described here is not the recommended process. Instead, Symphony recommends that you convert the data using a derived field, as described in Convert Attributes to Time Fields Using Derived Fields.

Symphony uses Java's SimpleDateFormat for time conversions. See SimpleDateFormat.

Note: Group functionality does not work for fields for which the type is manually set to Time. You cannot specify these fields as the Group, Group By, or Trend fields for a visual. You can use these fields in filters and apply them as filters on the time bar. However, you may find that the results shown in your visual are incorrect. This may happen because the manually configured time formats are different and, consequently, not in lexicographic order. For example, suppose you have two strings:

• String 20230801 (August 1, 2023) matches the time format yyyyMMdd.
• String 08012024 (August 1, 2024) matches the time format MMddyyyy.

When filtering time data by these fields, Symphony treats the time values as numbers. So, when filtered in ascending order, 08012024 will sort before 20230801, which is not correct (August 1, 2024 occurred after August 1, 2023, not before). The resulting visual will not be correct.

Convert an attribute field to a time field as a derived field in your data source configuration

1. Make sure you are logged in as a Symphony administrator.

2. Select the Sources option from s the main menu. The Sources page appears.

3. In the sources table on the Sources page, locate and select the data source configuration you want to edit.

4. Select the Fields tab.

5. Locate and select the time field (Data Type: Attribute) in the list of fields.

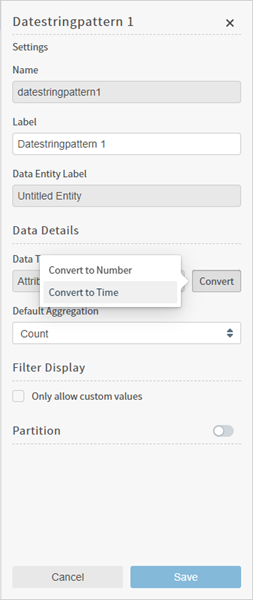

6. Select Convert in the Data Type area of the Settings tab for the field and select Convert to Time.

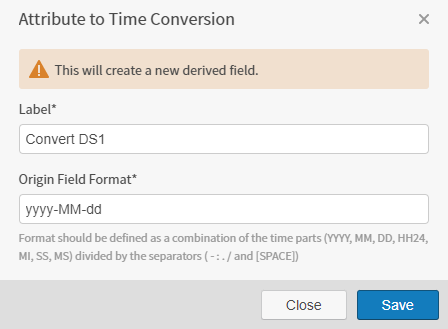

7. Rename the field in the Label field, and define time granularity in the Origin Field Format.


   Valid time parts include:

   • YYYY - four digit year
   • MM - two digit month
   • DD - two digit day
   • HH - two digit 24-hour format
   • MI - two digit minute
   • SS - two digit seconds
   • MS - two digit miliseconds

   Note: The information returned is limited by the information available in the original field. For example, if a field's data is stored in hours, you will get values up to the hour level. If you request granularity not available, zeros are returned for information not available, for example, 0 minutes, 0 seconds, and 0 milliseconds.

8. When your changes are complete, select Save create the derived field.

Convert a number field to a time field as a derived field in your data source configuration

1. Make sure you are logged in as a Symphony administrator.

2. Select Sources in the main menu. The Sources page appears.

3. In the sources table on the Sources page, locate and select the data source configuration you want to edit.

4. Select the Fields tab.

5. Locate and select the time field (Data Type: Number) in the list of fields.

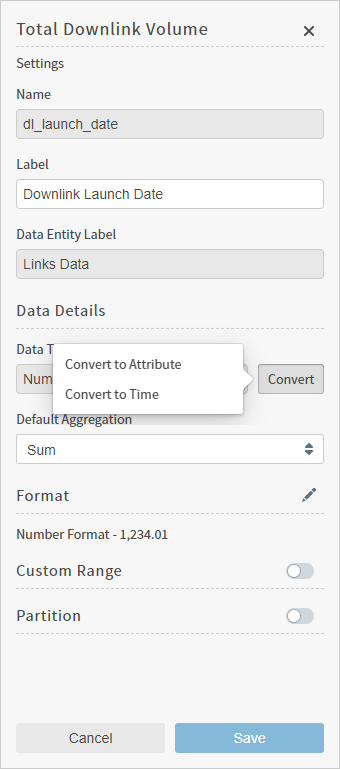

6. Select Convert in the Data Type area of the Settings tab for the field and select Convert to Time.

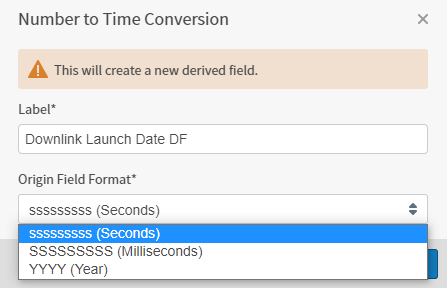

7. Rename the field in the Label field, and select an available time granularity in the Origin Field Format.


   Valid time parts include:

   • YYYY - four digit year
   • MM - two digit month
   • DD - two digit day
   • HH - two digit 24-hour format
   • MI - two digit minute
   • SS - two digit seconds
   • MS - two digit miliseconds

   Note: The information returned is limited by the information available in the original field. For example, if a field's data is stored in hours, you will get values up to the hour level. If you request granularity not available, zeros are returned for information not available, for example, 0 minutes, 0 seconds, and 0 milliseconds.

8. When your changes are complete, select Save create the derived field.
